Collider shapes

Beginner Designer

For colliders to interact, you need to set their shape in the Property Grid. You can specify a geometric shape, or use a collider shape asset.

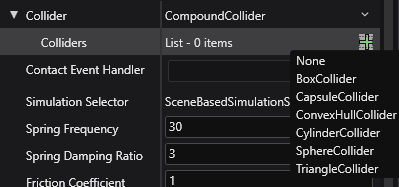

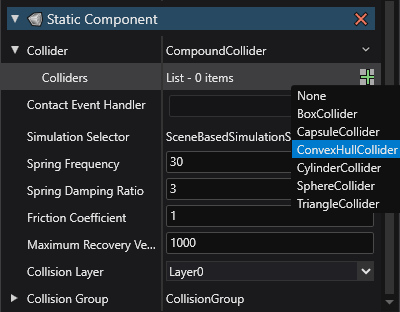

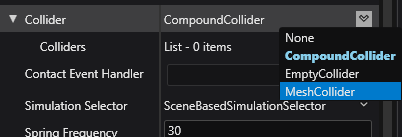

Select a collider shape

Components can have multiple intersecting shapes, and don't have to match the entity model, if it has one. Each shape has additional properties including size, orientation, offset, and so on.

Types of collider shape

Box

Property	Description
Is 2D	Makes the box infinitely flat in one dimension.
Size	The box size in XYZ values.
Local offset	The box position relative its entity.
Local rotation	The box rotation in XYZ values.

Capsule

The capsule shape is especially useful for character components, as its curved base lets the entity move to higher planes (eg when climbing staircases).

Property	Description
Is 2D	Makes the capsule infinitely flat in one dimension.
Length	The length of the capsule.
Radius	The radius of the capsule.
Orientation	The axis along which the shape is stretched (X, Y, or Z).
Local offset	The capsule position relative to its entity.
Local rotation	The capsule rotation in XYZ values.

Cone

Property	Description
Height	The height of the cone.
Radius	The radius of the cone at the bottom end.
Orientation	The axis along which the shape is stretched (X, Y, or Z).
Local offset	The cone position relative to its entity.
Local rotation	The cone rotation in XYZ values.

Cylinder

Property	Description
Height	The length of the cylinder.
Radius	The radius of the cylinder.
Orientation	Sets the axis along which the shape is stretched (X, Y, or Z).
Local offset	The cylinder position relative to its entity.
Local rotation	The cylinder rotation in XYZ values.

Sphere

Property	Description
Is 2D	Makes the sphere infinitely flat in one dimension.
Radius	The radius of the sphere.
Local offset	The sphere position relative to its entity.

Infinite plane

The infinite plane covers an infinite distance across one dimension. Think of it like a wall or floor stretching into the distance for ever. You can use several infinite planes together to box users in and stop them "tunneling" outside the level.

Property	Description
Normal	Which vector (X, Y, or Z) is perpendicular to the plane. For example, to make an infinite floor, set the normal property to: X:0, Y:1, Z:0.
Offset	The plane position relative to its entity.

Asset

Assigns a collider shape from a collider shape asset (see Collider shape assets below).

Property	Description
Shape	The collider shape asset used to generate the collider shape.

Collider shape assets

You can also create collider shape assets and use them as your collider shape. This means you can edit the collider shape asset and automatically update it in every entity that uses it.

Create a collider shape asset

In the Asset View (bottom by default), click Add asset.
Select Physics, then select the shape you want to create.

Game Studio creates the new collider shape asset in the CollisionMeshes folder.

Collider shape asset in Asset View

Create a collider shape asset from a model

This is useful to quickly create a collider shape that matches a model.

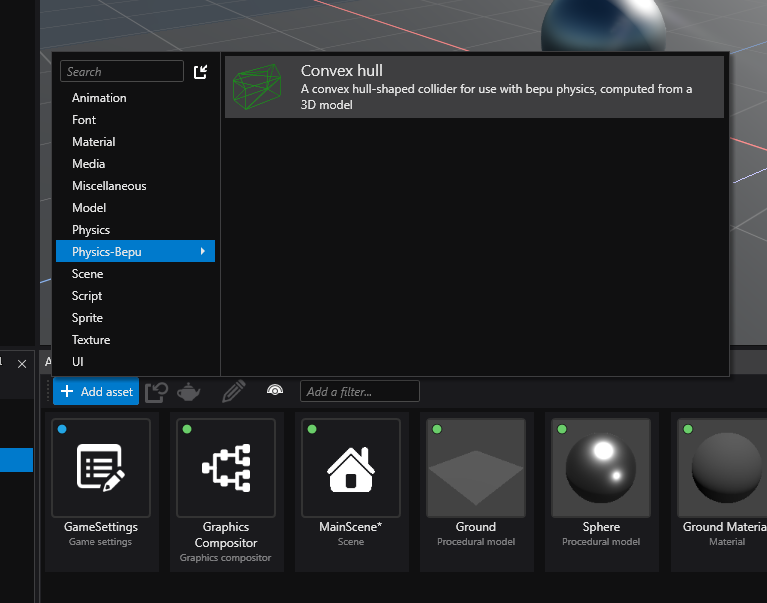

In the Asset View (bottom by default), click Add asset.
Select Physics > Convex hull.

The Select an asset window opens.
Browse to the model asset you want to create a collider shape asset from and click OK.

Game Studio creates a collider shape asset from the model.

Use a collider shape asset

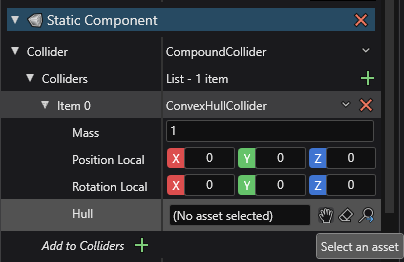

Under the static collider or rigidbody properties, under Collider Shapes, select Asset.
Next to Shape, specify the collider shape asset you want to use.

To do this, drag the asset from the Asset View to the Shape field in the Property Grid. Alternatively, click (Select an asset) and browse to the asset.
